Pressure Measurement Tools in the Industrial Field: Precision in Process Monitoring

world of technology
23 Sep, 2024

Pressure measurement tools are among the most important instruments used in various industries, playing a crucial role in monitoring and regulating industrial processes. Understanding pressure within different systems is vital to ensuring the safety and efficiency of operations. In this article, we will explore in detail the different types of pressure measurement tools, their working principles, applications, and the factors to consider when choosing the appropriate tool.

What is Pressure? Pressure is the perpendicular force exerted on a unit of area. In the industrial field, pressure is usually measured in units such as pascals (Pa), bar, or inches of water

1. Importance of Pressure Measurement:

  • Monitoring Industrial Processes: It helps in monitoring industrial operations and detecting any deviations from target values.
  • Improving Energy Efficiency: Precise pressure control contributes to improving energy efficiency.
  • Ensuring Safety: It ensures safety by detecting sudden increases in pressure that could lead to vessel explosions.
  • Quality Control: Assists in quality control by monitoring pressure at various stages of production.
  • Billing: Used to measure the amount of natural gas consumed in homes and businesses.

2. Types of Pressure Measuring Instruments:

There are various types of pressure measurement tools, each with its own advantages, disadvantages, and specific applications. Here are some common types:

1. Manometer

  • Traditional Manometer:
    • It relies on a column of liquid (usually mercury or water) in a U-shaped glass tube.
    • When pressure is applied to one end of the tube, the liquid moves inside, and the level of the liquid changes on both sides, indicating the pressure difference.
    • Working Principle: The difference in the liquid levels between the two sides measures the relative or differential pressure between points.
  • Inclined Manometer:
    • Works on the same principle as the traditional manometer, but the tube is inclined, providing higher accuracy for measuring small pressures.
    • Working Principle: The slight movement of the liquid causes a larger change in level due to the incline, allowing for more precise measurement of low pressures.

2. Bourdon Gauge



  • It consists of a curved metallic tube (often made of copper or steel) that is closed at one end and exposed to pressure at the other.
  • When pressure increases inside the tube, it tries to straighten, causing mechanical movement that transfers to a pointer, showing the reading on a dial.
  • Working Principle: The flexibility of the tube generates mechanical movement, which is translated into a pressure reading.

3. Digital Pressure Gauge



  • It relies on electronic pressure sensors, such as piezoelectric or piezoresistive transducers.
  • The sensors convert pressure into an electrical signal, and the reading is displayed digitally on a screen.
  • Working Principle: Pressure changes result in changes in the electrical signal, which is then translated into a numeric value by an electronic circuit.

4. Pressure Transducer



  • It converts mechanical pressure into a measurable electrical signal.
  • It contains a pressure sensor that responds to pressure changes and converts them into an electrical signal (voltage or current).
  • Working Principle: Voltage or current changes with the change in pressure, allowing the pressure to be read by a connected device.

5. Differential Pressure Gauge



  • Measures the difference between two different pressures via two sensors or inlets.
  • The pressure from both sides is applied to flexible diaphragms or pistons within the device, and the difference in pressure is compared.
  • Working Principle: The pressure difference between the two sides moves a pointer or sensor that displays the pressure difference.

6. Barometer



  • Used to measure atmospheric pressure, often relying on mercury or other liquids.
  • Mercury Barometer: It works by observing the height of a mercury column in a vacuum tube. As atmospheric pressure increases, mercury rises in the tube.
  • Working Principle: Changes in atmospheric pressure cause the liquid to rise or fall in the tube, which translates into an atmospheric pressure reading.

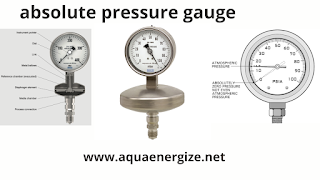

7. Absolute Pressure Gauge



  • Measures absolute pressure relative to a perfect vacuum (absolute zero pressure).
  • It contains a completely evacuated chamber as a reference, and the applied pressure is compared to this vacuum.
  • Working Principle: The absolute pressure in the external chamber is compared to the vacuum in the reference chamber, and the pressure is calculated.

8. Micromanometer



  • Designed to measure very small pressures with high precision.
  • It relies on highly sensitive sensors that detect tiny changes in pressure, often used for measuring airflow.
  • Working Principle: Signals resulting from very small pressure changes are amplified to display them on a gauge.

9. Hydraulic Pressure Gauge



  • Used to measure pressure in hydraulic systems where pressure is transmitted through fluids.
  • It works on the principle that fluids are incompressible, allowing the force to be transmitted evenly through the hydraulic system.
  • Working Principle: The device measures pressure through the response of the system’s fluid to the applied pressure and displays the reading.

10. Piezometer



  • Used to measure pressure in stationary fluids, often for measuring water pressure in soil or wells.
  • It consists of a thin tube inserted into the fluid and measures the fluid level based on its pressure.
  • Working Principle: The relationship between the height of the liquid in the tube and the fluid pressure at the point where the tube is inserted is used to determine the pressure.


3. Factors to Consider When Choosing a Pressure Measurement Tool

When selecting the appropriate pressure measuring instrument, several factors must be considered to ensure accuracy, reliability, and suitability for the specific application. Here are the main factors:

  1. Pressure Range:

    • The instrument should match the expected pressure range in the application. It's important to choose a tool that can reliably measure pressure within the expected minimum and maximum limits.
    • Tip: Choose a gauge with a range slightly higher than the maximum expected pressure to prevent damage or reduced accuracy.

  2. Type of Pressure:

    • Absolute Pressure: Measures pressure relative to a vacuum.
    • Relative Pressure: Measures pressure relative to atmospheric pressure.
    • Differential Pressure: Measures the difference between two different pressures.
    • Choose the appropriate tool for the type of pressure to be measured.

  3. Accuracy:

    • Accuracy determines how close the reading is to the actual pressure value. Sensitive applications require high-accuracy devices. Accuracy requirements may vary among industrial, engineering, and research applications.
    • Tip: Check the acceptable margin of error for your application. Accuracy is usually expressed as a percentage of the full scale.

  4. Pressure Medium:

    • The choice of tool is influenced by the type of medium (gas, liquid, oil, air, etc.). Some measuring instruments are specifically designed to handle certain media, such as hydraulic fluids or air.
    • Tip: Ensure that the materials used in the instrument are resistant to corrosion or damage when exposed to the medium whose pressure is to be measured.

  5. Environmental Conditions:

    • Environmental factors include temperature, humidity, exposure to chemicals, vibrations, and external pressure. Some instruments may be adversely affected by harsh environments (e.g., high temperatures or aggressive chemicals).
    • Tip: Choose a tool capable of operating efficiently in the surrounding environmental conditions.

  6. Response Time:

    • Some applications require rapid and immediate measurement of pressure changes, such as dynamic systems or industrial processes.
    • Tip: Ensure that the response time of the instrument meets the needs of the system.

  7. Mounting Type:

    • Some tools come with different mounting options, such as:
      • Panel mounting.
      • Pipe mounting.
      • Portable instruments.
    • Tip: Choose the appropriate type for the instrument's installation based on the location and available space in the system.

  8. Compatibility with Other Systems:

    • In modern systems, the pressure measuring instrument should be compatible with other systems, such as control systems or digital devices.
    • Tip: If you have a control or automation system, ensure that the instrument supports digital or analog output and is compatible with required protocols.

  9. Cost:

    • Budget plays a significant role in selecting the tool. Some advanced, high-accuracy instruments may be costly, while simpler tools may be more economical.
    • Tip: Balance the cost with the essential requirements of the application; don’t pay for features you don’t need.

  10. Ease of Maintenance and Calibration:

    • Some instruments require regular maintenance or calibration to ensure long-term accuracy.
    • Tip: Choose a tool that is easy to maintain or requires less frequent calibration, especially if it will be used in harsh environments.

  11. Reliability and Durability:

    • Choose a durable instrument designed for prolonged use, especially in industrial environments.
    • Tip: Tools with robust design and long lifespan can save on maintenance and replacement costs.

  12. Certifications and Compliance:

    • In certain applications (such as food or pharmaceutical industries), the tool may need to comply with specific standards such as ISO or CE.
    • Tip: Ensure that the instrument carries the required certifications for your application.

  13. Long-term Stability:

    • Stability refers to the instrument's ability to maintain its accuracy over time.
    • Tip: Choose tools with long-term stability to reduce the need for frequent recalibration.

  14. Output Type:

    • Outputs can be analog or digital, depending on the application.
    • Tip: Choose an instrument that provides the type of output you need, especially if you need to connect it to a control system or data analysis.

By considering these factors, you can select a pressure measurement tool that best fits your needs and specific application, ensuring accurate measurements and operational efficiency.


Pressure measuring instruments are essential tools in many industries and engineering processes. These instruments provide accurate information about pressure, helping to improve efficiency, productivity, and reduce costs. When choosing the right pressure measurement tool, several factors should be taken into account, including measurement range, accuracy, medium type, operating conditions, and cost.
